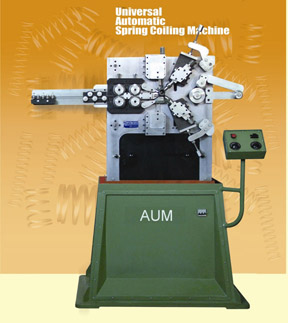

We are manufacturer and exporter of universal automatic spring coiling machine.

Machines available for any kind of left or right hand coiled. We can supply spring coiled machine as per your requirement.

  • Features of AUM Chalk Machinery.
  • This universal automatic spring coiling machine is suitable to make left or right hand coiled springs of the compression or tension type, with closed end coils, Cylindrical tapered or double tapered and other shaped spring.
  • Wire is inserted to the feed rolls through the straightening unit. Pressure on the wire is adjusted by manual screwing of individual feed rolls, the R.P.M. of the feed rolls can be set through gear box.
  • Gear box can be provided of manual changing type or of Norton type.
  • An inching arrangement is provided for easy setting of the machine during cut off operation. Feed rolls get automatically stopped to protect the machine from overloading.
SPECIFICATION Aum Spring Machine - 10 Aum Spring Machine - 20 Aum Spring Machine - 30
Wire in mm 0.1mm to 1.2mm 0.9mm to 4.0mm 1.5mm to 6.0mm
Spring in mm 20.0 mm 60.0mm 90.00mm
Power Consupmtpion 1 HP 2 HP 4 HP
Max. Wire output per hour approx. 700 mtr. 500 mtr. 350mtr.
Motor R.P.M. 1440 RPM 1440 RPM 1440 RPM
Production speed per minute approx. 60 pcs. max 40 pcs. max 30 pcs. max
Machine Overall dimension Height 150 cm 150 cm 150 cm
Machine Overall diemsion widht x legnth 75 x 75 cm 90 x 90 cm 100 cm x 100 cm
Weight of M/c. approx 350 kgs. 500kgs. 700kgs.
  • For further kindly send your query to our email oil@oilmachinery.com
